Silica aerogel blankets – High-Performance Thermal Insulation
Silica aerogel blankets as innovative insulation solutions with highest fire resistance and durability
Highly Efficient, Robust and Fire-Resistant Insulation
Silica aerogel blankets are superinsulation materials based on silica aerogel contained in a fiber blanket carrier.
Oryza BGT – Thermal Superinsulation
Oryza BGT is a high-performance insulation solution consisting of silica aerogel integrated into a blanket carrier. It is highly fire resistant and very robust. Due to advanced processing technology, dust release during handling and installation is strongly reduced.
Oryza BGT works both in cryogenic and hot environments.
Oryza BGT has been used successfully in chemical and Oil & Gas plants on-shore and off-shore and in buildings worldwide, where it helps to save energy and reduce CO2 emissions. It offers excellent thermal insulation performance at two levels depending on application requirements (Oryza BGT and Oryza BGT Low Lambda or LL).
With Oryza BGT, we are offering sustainable and energy-efficient solutions for a wide range of applications.
Oryza BGT enables very slim thermal insulation in applications with highly limited available space.

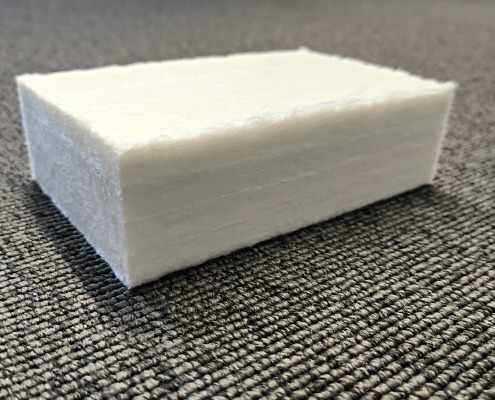

Oryza BGT is available as flexible rolls and as multi-layer boards.
There are two performance levels available:
Oryza BGT: approx. 0.019 W/(m*K)
Oryza BGT LL: approx. 0.015 W/(m*K)
Please note that Oryza BGT X is no longer available and has been replaced by the improved Oryza BGT LL.
See here for our technical guide.
Highlights
Two products forms – flexible rolls and multi-layer boards
Highest energy efficiency due to low thermal conductivity at two performance levels (Standard and LL)
Thinnest thermal insulation available in various thicknesses
Maximum safety due to non-flammability (Fire Class A1)
Simple to process and integrate due to low-dust technology
Wide operating temperature range from cryogenic to hot applications
Long product lifetime for sustainable solutions
Water vapor-diffusive due to open aerogel structure
Robust and durable as validated in demanding applications such as Offshore platforms
Reduces Corrosion under Insulation (CUI)
Strong resistance to jet fire
Typical Properties
Thermal conductivity with two levels:
Oryza BGT: approx. 0.019 W/(m*K)
Oryza BGT LL: approx. 0.015 W/(m*K) (10°C)
Fire Class: A1 (DIN EN 13501-1)
Density: 160-180 kg/m³
Operating Temperature Range: -165 to 650°C
Very low dust release
Hydrophobic
Available in two product formats:
Flexible rolls of 1.5 m width in 3, 5, and 10 mm thickness
Multi-layer boards of 0.73 x 0.73 and 0.73 x 0.50 m size in 20, 30, 40 and 50 mm thickness
| Thermal conductivity Oryza BGT (ASTM C177) | W/(m*K) | BTU*in/(h*ft2*°F) |
|---|---|---|
| -165°C / -265°F | 0.010 | 0.07 |
| -129°C / -200°F | 0.013 | 0.09 |
| -73°C / -100°F | 0.015 | 0.10 |
| -18°C / 0°F | 0.018 | 0.13 |
| 0°C / 32°F | 0.018 | 0.13 |
| 24°C / 75°F | 0.020 | 0.14 |
| 38°C / 100°F | 0.020 | 0.14 |
| 93°C / 200°F | 0.022 | 0.15 |
| 149°C / 300°F | 0.022 | 0.15 |
| 204°C / 400°F | 0.025 | 0.17 |
| 260°C / 500°F | 0.029 | 0.20 |
| 316°C / 600°F | 0.036 | 0.24 |
| 371°C / 700°F | 0.042 | 0.29 |
Tested standards
ASTM C165-23
ASTM C356-22
ASTM C411-19
ASTM C447-15
ASTM C795
ASTM C1101/1101M-23
ASTM C1104/1104M
ASTM C1338
ASTM C1617-19
ASTM C1763
ASTM E84
ASTM C177-19
ASTM C1511
ASTM C303-21
ASTM C871 -18
ASTM D5116
ASTM C692-13
EN 826:2013
EN 12667
EN / ISO 13501-1
ISO 22899-1
ISO 20088-1&3
BS476 Part 4
Exposure to cryogenic temperature
